16.5gsm heatseal teabag filter paper for Maisa EC-12/B

FOB Reference Price:Get Latest Price
US $4.75-4.95 / Kilograms | 500 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Double Ring
Model Number:
xinhua
Type:
Qualitative
Material:
Wood Pulp
Usage:
wrap tea,coffee or herbal, wrap tea,coffee or herbal
Width:
87mm
Thickness:
64-78um
Color:
white or nature
Basis weight:
16.5g, 17g,18g, 22g, 24g
Raw material:
Abaca pulp,wooden pulp
Certificate:
SGS,FDA, FOOD GRADE
Surface:
One side rough ,one side smooth
Seal side:
Outside
Seal material:
Polypropylene
Heat Temperature:
135 degree
Availability:
100%
SupplyAbility
SupplyAbility:
3500 Ton/Tons per Year
Packaging & Delivery
Packaging Details
1. exported carton:
it is suitable for long distance transportation,
2roll/ctn 15kgs/ctn 450X450X275mm
1000kgs about packed in 67cartons (3.73cbm),
20" container can be loaded 7500kgs
125mm width can be loaded 500cartons
2. pallet
20carton can be loaded one pallet
1000kgs can be loaded 3pallets
Port
Shanghai or Ningbo
Lead Time :
within 10-15days



The description of filter paper :

Tea bag filter  paper manufactured from a specialty selected blend of high quality Abaca pulp (imported from Phlippines) , wooden pulp(imported from Canada) and P.P. fibre (imported from Austria). This paper has the best seal integrity, excellent particle retention, superior infusion, taste neutrality and optimum wet strength. It is used to wrap tea,coffee or herbal in the food industrial. this paper complies with the latest food contact legislation of the United States (FDA 21 CFR 176.170) ,America SGS and the national standard is GB/T25436-2010



The specifications of filter paper :

1.Basis Weight: 16.5gsm 17gsm 18gsm,22gsm, 24gsm

2.Width: 120mm,125mm,130mm,145mm etc.

3.Outside diameter:300-500mm

4.Core size : 76mm (3'')

5.Package: 2or 3 rolls/ctn

6.Color: Bleached & Unbleached

7.Delivery time: 15days

8.terms of payment: 50% T/T in advance and 50% upon shippment

9.minimum order: 500kgs



The technical data of filter paper





Product's name

Heatseal tea bag filter paper

Basis weight of teabag filter paper

16.5g, 17g,18g, 22g, 24g

Width of teabag filter paper

94mm,100mm,125mm,132mm,484mm etc.

Core diameter

76mm

Outside diameter

430mm

Package

1-4 rolls/ctn with PVC bag and carton (or pallet)

Delivery

10days

Payments

T/T or L/C

MOQ

10kgs

Sample

For free

Shipment

By sea or air

Usage

Wrap tea,coffee,herbal or ingredients bags







Basis weight of  filter paper

16.5±0.9gsm

Raw material of  filter paper

Abaca pulp(45%) Phlippines,wooden pulp(Canada), P.P. Fibre (Austria)

Seal temperature

135degree

Suitable machine

Argentina Maisa EC-12 ,EC-12/B,  CYD-95

Italy IMA C51,C56,C55,

China Nanfeng  CCFD6,DXDC15,

thickness of  filter paper

0.072mm

Wet bursting strength

≥350mm water column

Air permeability

150 cm3/cm2.s

Tensile strength  (MD)

≥0.52 kn/m

Tensile strength  (CM)

≥0.12 kn/m

Wet tensile strength(MD)

≥0.11 kn/m

Seal strength

≥0.10 kn/m

Filtering speed

≤ 3 s

Moisture

≤8 %



Applications:
Teabag filter paper is used to process teabag by packing machine, it will be sealed when the packing machine temperature arrived above 135 degree,.

Teabag filter paper is suitable for the different packing machine, such as CCFD6 packing machine made by China, MAISA packing machine made by Argentine and IMA  packing machine made by Italy , The main size 125mm and 140mm.

Teabag filter paper has performance of soft papery and high wet strength and measure up  the line standard of GB/T25436-2010 constituted by Hangzhou Xinhua Paper Industry Co., Ltd. in 2010.







company introduction:

Hangzhou Xinhua Paper Industry Co. Ltd. is the First Class State Owned enterprise and largest teabag filter paper manufacturer which is established 1992 on the basis of 40 year old Hangzhou Xinhua Paper Mill, the total invest value is USD48.88 million and the registed capital is USD16.6 million. covered the area of 177269 square meter, owned five production lines. the annual turnovers exceed USD20.5million,employed 695 personnel and 56 professional technician and 80professional engineers. the trademark is "Double Ring".





OUR SERVICE

Free samples are available

Every raw paper roll coming out from paper machine is attached with a technical data Sheet to control the paper quality

Quality control before slitting the paper for customers

Follow up quaity feedbacks from customers





FAQ

1.ARE YOU A MANUFACTURER

  Yes, our companay is the largest teabag filter paper manufactuer in China which is established 1952, jointed with Hongkong ZhongTai investment company on 1992,  produced the first teabag filter paper from 1982, set the national standard of GB/T25436-2010. now we have 3 productions lines , the capacity is 3500T/year.



2. what's is you main products

our main products is heatseal teabag filter paper,coffee filter papaer and nonheatseal teabag filter paper

nonthe basis weight is 13gsm, 13.5gsm,14gsm

heatseal teabag paper: 16.5gsm, 17gsm,18gsm,22gsm and 24gsm.

brown teabag paper: 18.5gsm, 20gsm ,22gsm, 24gsm, 26gsm

coffee filter paper : 22gsm, 24gsm ,26gsm, 40gsm,

the width is : 66mm, 100mm, 125mm, 132mm, 490mm,524mm,870mm



3. what main packing machine does your paper is suitable for ?

A.  16.5gsm, 17gsm is suitable for fast speed packing machine (such as IMA C51,C55 ,Argentina EC21,EC21-B,)

B.  18gsm(A-1) ,22gsm (C-1) is suitable for medium speed packing machine (such as CCFD6 machine)

C. 18.5gsm, 22gsm(C-2), 24gsm, 26gsm is suitable for slow speed packing machine (such as Taiwa machine and Fujiang machine)



  DSCF5138   20140724_120326.jpg



20130411_123612  20130411_123721





    DSC03285



20131219_101142     1406697895363_hz-fileserver-upload-02_6387544





1406278364665_hz-fileserver-upload-04_4199436   20140114_144412







 1394786574949_hz-fileserver-upload-02_38980    DSC00786

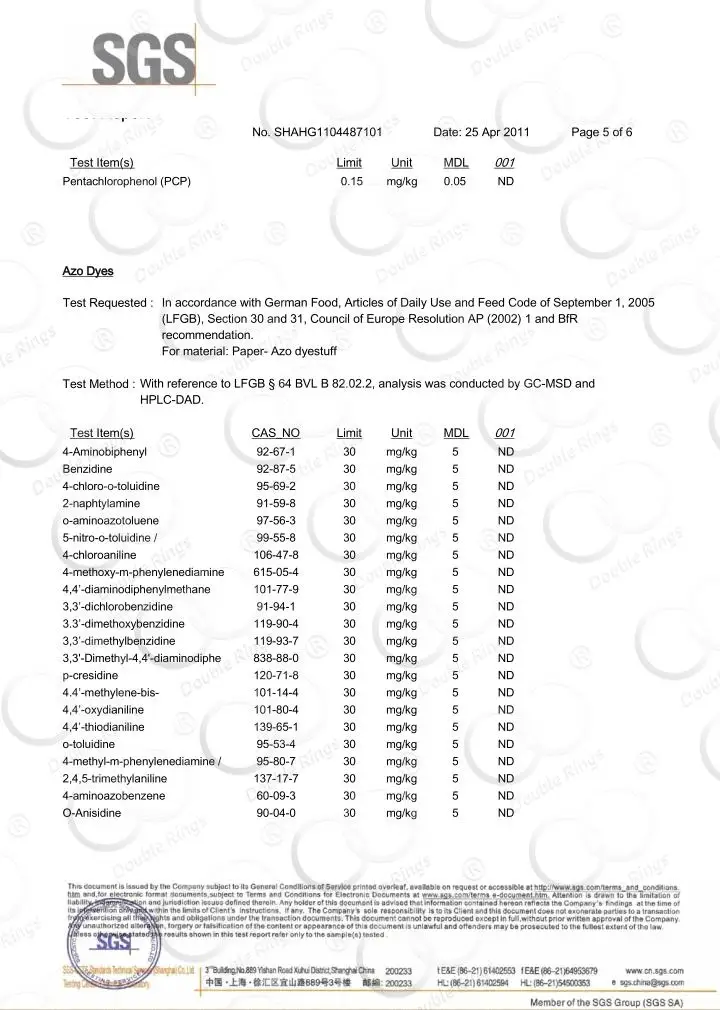

 mark_SGS05
